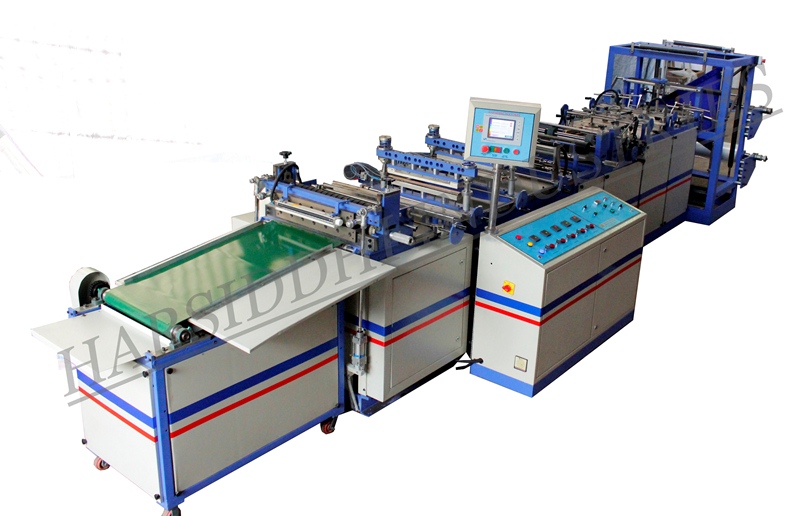

Mechanical Combination Pouch Making Machine

Picture Gallery

Watch Video

E-Catalogue

Main Features:

  • Fully Touch-screen controlled (7.00")

  • Robust and maintenance free design

  • Fully synchronized servos

  • Edge guider/ web liner

  • Programmable conveyor

Production Variety:



  • Three side seal pouches
  • Cente seal pouches
  • Perphoration pouches
  • Six side seal
  • Gussate pouches
  • D-punch Bags
  • Sheet cutting

Machine is divided in following section:

  • Conveyor ‚Äč
  • Cutter
  • Slitting
  • Registration
  • Print/Mark section
  • Punching
  • Longitudinal sealing/ cooling
  • Dancer
  • Three side sealing
  • Two unwinder for extra insertion flap
  • Gussate forming
  • Center sealing
  • Tube forming
  • Triangle
  • Unwinder
  • Edge guider

Specifications:


                                                max.     min.

paper size(mm)                          1000     100

pouch length(mm)                        500       50

roll diameter(mm)                         600     100

gussate deep(mm)                       100       15

machine speed* (cpm)                  144       25



  • Auto-tune PID TEMP. CONTROLLER

  • Imported motors and gear boxes

  • Dyna-spede tension controller

  • Imported Photo sensor for print mark registration

M/c Code: HICPMM-500

MFG. OF: ALL TYPE OF POUCH & BAG MAKING MACHINERY
